The most affordable WiFi 7 access point? – MBReviews Leave a comment

The WiFi 7 gadgets are getting cheaper and it is sensible contemplating greater than two years have already handed after the launch of this new commonplace. And now I bought the chance to check the Zyxel NWA110BE which appears to be one of the crucial reasonably priced WiFi 7 entry factors in the marketplace. So I had to wonder if some essential corners have been lower?

It does have a WiFi 7 radio band, which places the NWA110BE above these pseudo WiFi 7 system I’ve examined final yr. We additionally do get 4 spatial streams for the 5 and the 6GHz radios (higher than the NWA130BE) plus the usage of the superior RF filter design to assist take care of interference. And sure, there may be assist for NebulaFlex and the Nebula Cloud Controller. So, how else is the Zyxel NWA110BE totally different from the NWA130BE? Properly, the previous does include a single 2.5GbE port, whereas the latter has two and there appears to be assist for Multi Hyperlink Operation which I admit got here as an enormous shock.

However there may be one main side, you possibly can’t run each the 5GHz and the 6GHz radios, it’s a must to select which will likely be lively at a time. Issues do make much more sense now, so let’s put the NWA130BE to the take a look at and see the way it performs.

The Design and Construct High quality

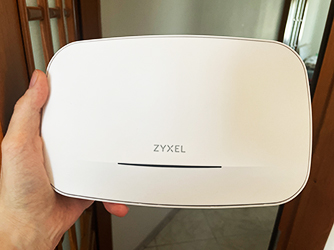

Earlier than that, let’s take a look on the design and construct high quality. I put the NWA130BE and the NWA110BE subsequent to one another and, from the highest, you possibly can’t inform them aside. Each are fully product of heat-conductive plastic, prime and backside, the metallic alloy is just discovered on the WBE660S.

The flashing LED is positioned on the prime as properly, with the ambiguous colours to allow you to guess what’s happening. Blue and inexperienced are an excellent signal, whereas orange and crimson not a lot. That’s what most individuals will suppose and it’s pretty spot on. Flip the NWA110BE the wrong way up and we will see the identical acquainted area for the mounting bracket. Don’t neglect that this can be a ceiling-mount entry level, so it is not going to sit properly on a desk. It would possible fall off simply and we don’t need that.

We nonetheless see the facet cowl which protects the Console port, a function that I discovered on just about all Zyxel entry factors to date and it’s extremely appreciated. After which we get to examine the ports space.
As I discussed within the intro, there’s a single 2.5GbE ports which does assist PoE, however you may as well see a USB-C port. This can be utilized to energy up the entry level and it’s undoubtedly an awesome function to have contemplating that just about everybody now has a USB-C cable of their house.

Extra producers ought to observe in the event that they actually care in regards to the surroundings. I did examine for the Reset button, however then I spotted that it’s subsequent to the Console port, beneath the aforementioned cowl, so all is okay.

The Thermal Administration

I opened each the NWA110BE and the NWA130BE, and I can say that they don’t differ that a lot in how the thermal administration was designed. There are sufficient warmth spreaders and warmth pads to make sure an excellent temperature. However let’s use a thermal digital camera to make sure that that is certainly the case. As you possibly can see, there are some heat spots, however there doesn’t appear to be an opportunity for overheating. I assume a fan was probably not wanted in spite of everything.

Zyxel NWA110BE Teardown

A devoted video that goes over all the teardown course of is already up, so I’ll shortly run by what I encountered whereas opening the system. There are 4 screws that have to be eliminated, and whereas it might appear that there’s yet another, it’s simply the latches which might be being cussed, so put extra stress when eradicating the higher half. We are able to see that Zyxel didn’t lower any corners within the design of the antennas which is nice information and, then we will take away the warmth pads to see the primary parts. I did wrestle fairly a bit with one aluminum cowl, however that’s what you get if you don’t have the suitable instruments and the suitable mindset. Chaos. Anyway, these are the primary parts and I did additionally embody a comparability desk with different WiFi 7 entry factors.

{Hardware} Comparability

Single Consumer Exams (6GHz & 5GHz)

Judging by the outcomes I bought on the single-client checks, it’s fairly clear that the Zyxel NWA110BE outperforms the NWA130BE not solely when utilizing a WiFi 7 adapter, however a WiFi 6 as properly.

Utilizing the WiFi 5 shopper, the efficiency was just about the identical. And that’s each upstream and downstream.

Clearly, it does beg the query whether or not the adapter is extra secure and the Home windows updates made issues higher over time contemplating that I examined the NWA130BE a few yr in the past. Nonetheless, it’s good to see that a cheap WiFi 7 entry level can cross the 2Gbps barrier.

As for the sign attenuation graphics, we will see that even on the -82dB mark, we nonetheless get a connection, though downstream, we see the throughput dip beneath 1Mbps when utilizing the 320MHz channel width on the 6GHz radio.

When in comparison with different WiFi entry factors, we will see that whereas utilizing the 80MHz channel bandwidth, the NWA110BE sits close to the highest, solely beneath the TP-Hyperlink EAP660HD. Spectacular.

When switching to the 160MHz channel width, we see that the NWA110BE is a step beneath the NWA130BE.

After switching to the 6GHz radio band and utilizing the 320MHz channel bandwidth, we see that it sits beneath the EAP773 and really above the NWA130BE which was surprising.

As at all times, I’ve additionally included a longer-term graphic to see how the throughput fluctuates over time.

Single Consumer Exams (2.4GHz)

After operating the identical sort of checks on the two.4GHz radio band and utilizing the 40MHz channel bandwidth, we will see that each the WiFi 5 and the WiFi 6 purchasers begin sturdy and the previous did rather well at an extended vary.

And that is additionally confirmed by the sign attenuation graphic.

When in comparison with different entry factors, we will see that the Zyxel NWA110BE sits beneath the ECW336 and above the U6 Professional. It’s value mentioning that the NWA130BE does sit on the prime.

The Multi-Consumer Exams

OK, now we’ve lastly reached the multi-client checks and as at all times, I proceed to make use of the net-hydra instruments developed by Mr Jim Salter you could additionally take a look at on Github. And I did find yourself utilizing the identical set of numerous shopper gadgets which isn’t best, however adequate contemplating the present scenario.

I began with the concurrent 1080p streaming visitors on 5 purchasers and it’s clearly not so good as what I noticed after I examined the NWA130BE.

I imply, I recommend you don’t stream on greater than a few gadgets for an excellent latency.

After which I ran 4K streaming on the 5 purchasers which clearly made issues worse, however at the least we will see no shopper went loopy and all sat between 100 and 200 ms, all minus the Zimaboard. For those who thought that already put a pressure on the entry level, properly I made a decision to run simulated intense shopping alongside the 1080p streaming.

And, we will see that the WiFi 5 and the WiFi 7 purchasers carried out weirdly, whereas the remainder sat a bit beneath 100ms more often than not.

After switching to the extreme shopping graphic, the WiFi 7 shopper once more went haywire for no matter purpose (I ran the take a look at a number of instances), the WiFi 5 shopper actually threaded the road there, all whereas the remainder stayed beneath 1s.

Curiously, after operating the extreme shopping alongside the 4K streaming visitors, we see a extra calm efficiency, though removed from best nonetheless.

The extraordinary shopping graphic exhibits that every one purchasers stayed beneath 1.5 seconds which is okay. Shifting ahead, I returned to a 5-client setup and simulated downloading visitors on two shopper gadgets with none set restrict.

The purchasers would obtain a 10MB file constantly. Two purchasers handles intense shopping and one would deal with 4K streaming. And issues are calmer than anticipated. It’s a stark distinction to what I noticed with the Zyxel NWA130BE.

These are not any stellar values, however once more, in keeping with among the greatest WiFi 7 entry factors in the marketplace. The entire throughput for the downloading purchasers was 568.3Mbps.
Afterwards, I set a single shopper to deal with the downloading visitors and we will see a sub 200ms latency for about 75% of the time.

The 2 4K streaming purchasers didn’t do this properly, however the intense shopping was tremendous. After that, I restricted the variety of purchasers to 3, however it didn’t appear to make that a lot of a distinction for the downloading shopper, whereas the 4K streaming one did expertise some aid.

Subsequent, maintaining the three purchasers, I switched the 4K streaming for intense shopping, one shopper would obtain a 1MB file and the final shopper would deal with VoIP.

The downloading latency remained close to and underneath 60ms for all the period of the take a look at, the extreme shopping did particularly properly and the VoIP was tremendous additionally.

Lastly, I made a decision to obtain that 10MB file on all 5 shopper gadgets and the these are the outcomes.

MLO Efficiency

OK, now let’s discuss in regards to the MLO efficiency. I initially had some points making it work, however it was a mistake of my very own. Don’t set the identical SSIDs for each the stand-alone mode and the Nebula Cloud, in any other case you received’t know that you just’re probably not related to the later.. Anyway, studying from errors. Since you possibly can both allow the 5GHz or the 6GHz radio at a time, then the MLO configurations can solely be 5GHz + 2.4GHz and 6GHz + 2.4GHz. And you may examine the outcomes that I bought operating a easy single-client take a look at right here.

I additionally ran FLENT, the fundamental take a look at solely and these are the outcomes that I bought.

The Standalone Mode

Now let’s discuss in regards to the software program expertise. The Zyxel NWA110BE does have a standalone GUI you could entry by going to the IP deal with acquired by the router/gateway and remember that the default password is written on the label from the underside of the entry level. The interface could be very complete, together with the overall data Dashboard and the Monitor part which fits way more in-depth with the obtainable standing data.

Then, there’s the Configuration part the place you possibly can regulate the settings for every radio and the SSIDs, examine the Rogue AP detection, DCS, Load Balancing and extra. Lastly, there’s the Upkeep part the place you possibly can regulate the config recordsdata, replace the firmware, use Distant Seize and Reboot the entry level.

The Nebula Controller

When you have any prior expertise with a Nebula Cloud-supported Zyxel entry level, know that the pairing course of, the monitoring and configuration is actually the identical throughout all gadgets. And even when it’s the primary time utilizing the Nebula controller, it’s pretty intuitive, though it is going to take a bit till you’re going to determine the place every part is positioned.

The Dashboard is the place all of the gadgets which might be related will likely be exhibiting some standing data and if you wish to see all of the entry factors, then there’s a devoted part underneath Gadgets. These areas are appropriate for monitoring functions, whereas if you wish to configure how the NWA110BE behaves, then we have to entry the Configure part and we will begin with the SSID settings. These are going to be common and adopted by all entry factors from the identical website and there are much more settings underneath the superior part.

Don’t neglect to set the safety encryption to WPA3 if you wish to use the 6GHZ radio. And right here we additionally get to allow MLO because the NWA110BE is on the record of supported gadgets. I haven’t been in a position to allow it, however it appears to be a bug that’s at the moment being mounted. One other essential part is the Radio settings the place we get to set the common habits for the radios throughout all entry factors, however for those who scroll to the underside, you possibly can choose the NWA110BE and make particular person adjustments to it.

That is the place you possibly can cycle between the 5GHz and the 6GHz radio. There are different settings such because the AP and port settings, Visitors shaping and even a complete Captive portal customization obtainable. That is all underneath the free subscription license, however you may get much more options for those who determine to go for the Professional license.

Conclusion

The Zyxel NWA110BE could also be one of the crucial reasonably priced WiFi 7 entry factors in the marketplace, however there may be already rising competitors at this stage as properly (the EnGenius ECW516L). Then once more, the single-client take a look at outcomes did reveal an excellent throughput, shut and even higher in some areas than the NWA130BE. The multi-client checks did present {that a} bit much less gadgets could be dealt with on the similar time underneath a heavier load than regular. One caveat is unquestionably choice to make use of both the 5GHz or the 6GHz radio at a time, however there may be MLO which does work, so, if the NWA130BE is an excessive amount of in your wants, then the NWA110BE ought to be proper up your alley.
